기록된 평범한 회전식 십자문과 15년 이상간 파킹 장치 제조!
주식 코드 :832966
| Place of Origin: | China |
|---|---|
| 브랜드 이름: | SHENZHEN DOOR |
| 인증: | CE / IS09001 |
| Model Number: | DR.TD.6629A |
| Minimum Order Quantity: | 1 unit |
| 가격: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2000 units |
| 강조하다: | High speed pedestrian turnstile with servo motor,DC24V speed gate turnstile,Servo motor pedestrian turnstile |
||
|---|---|---|---|

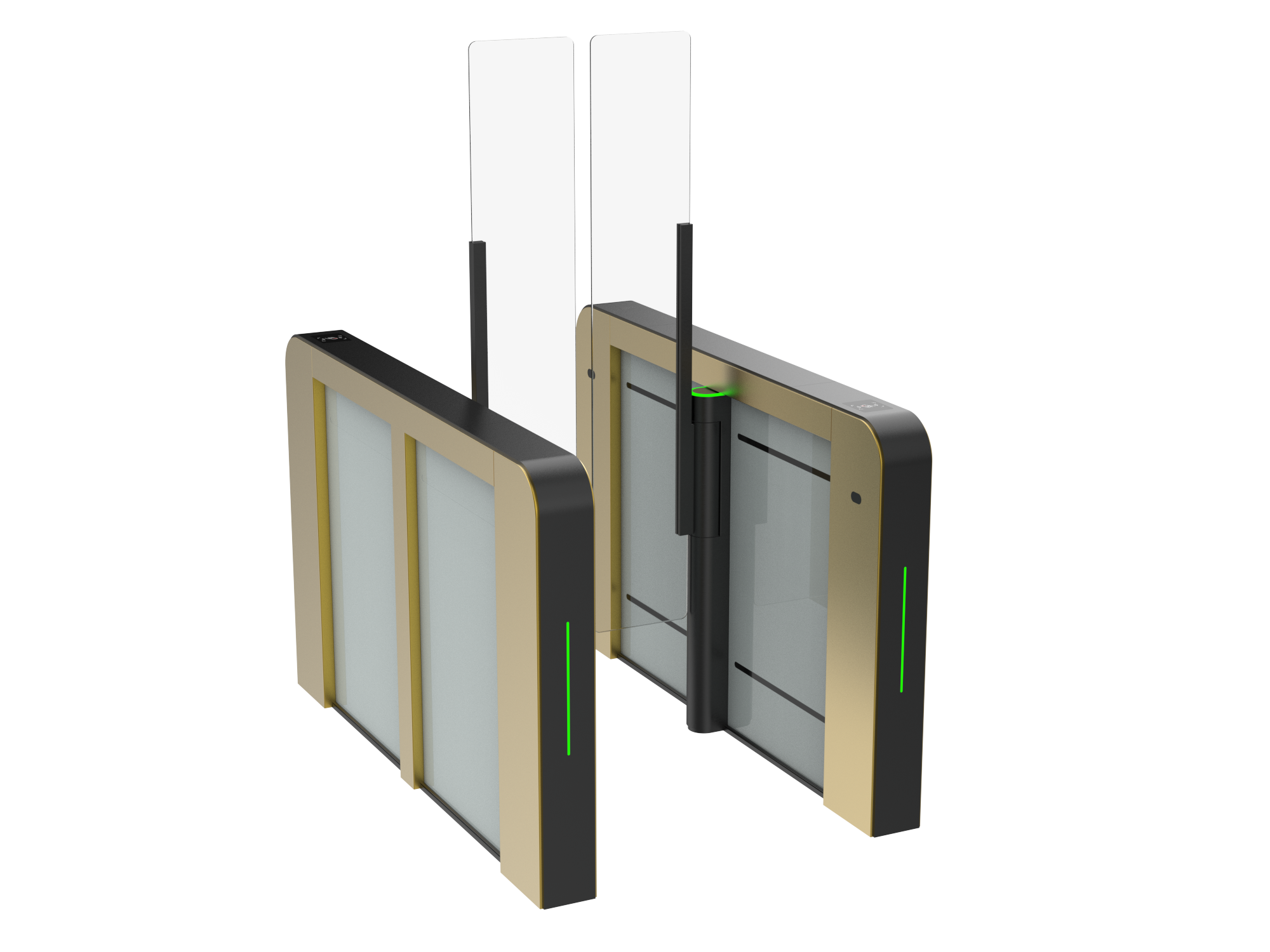

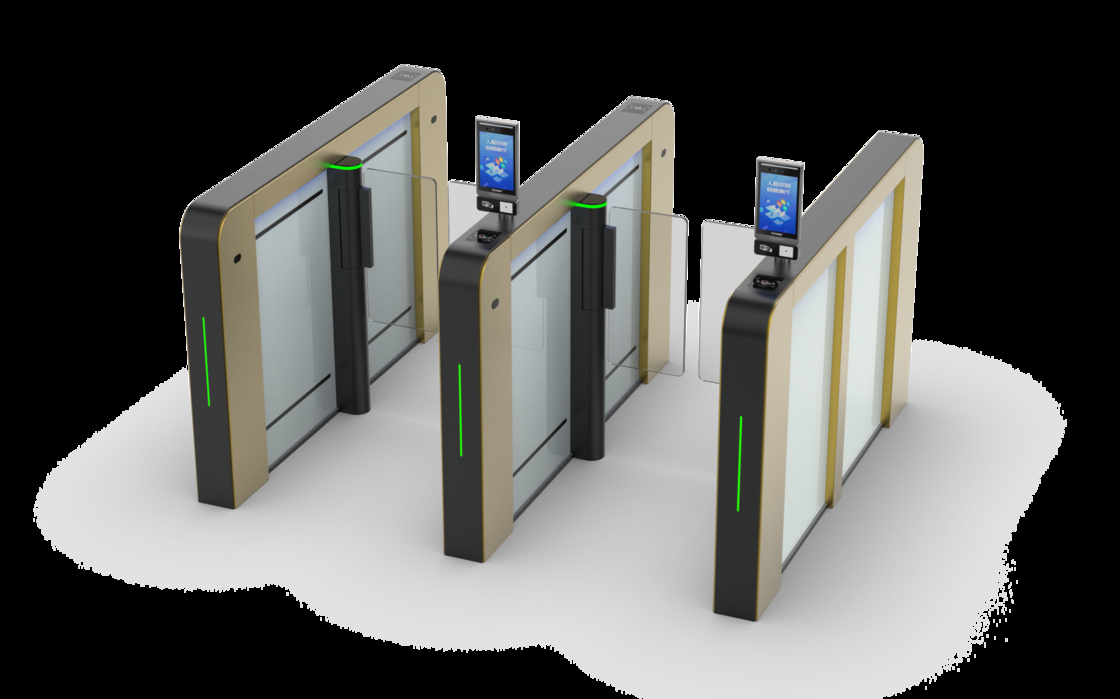

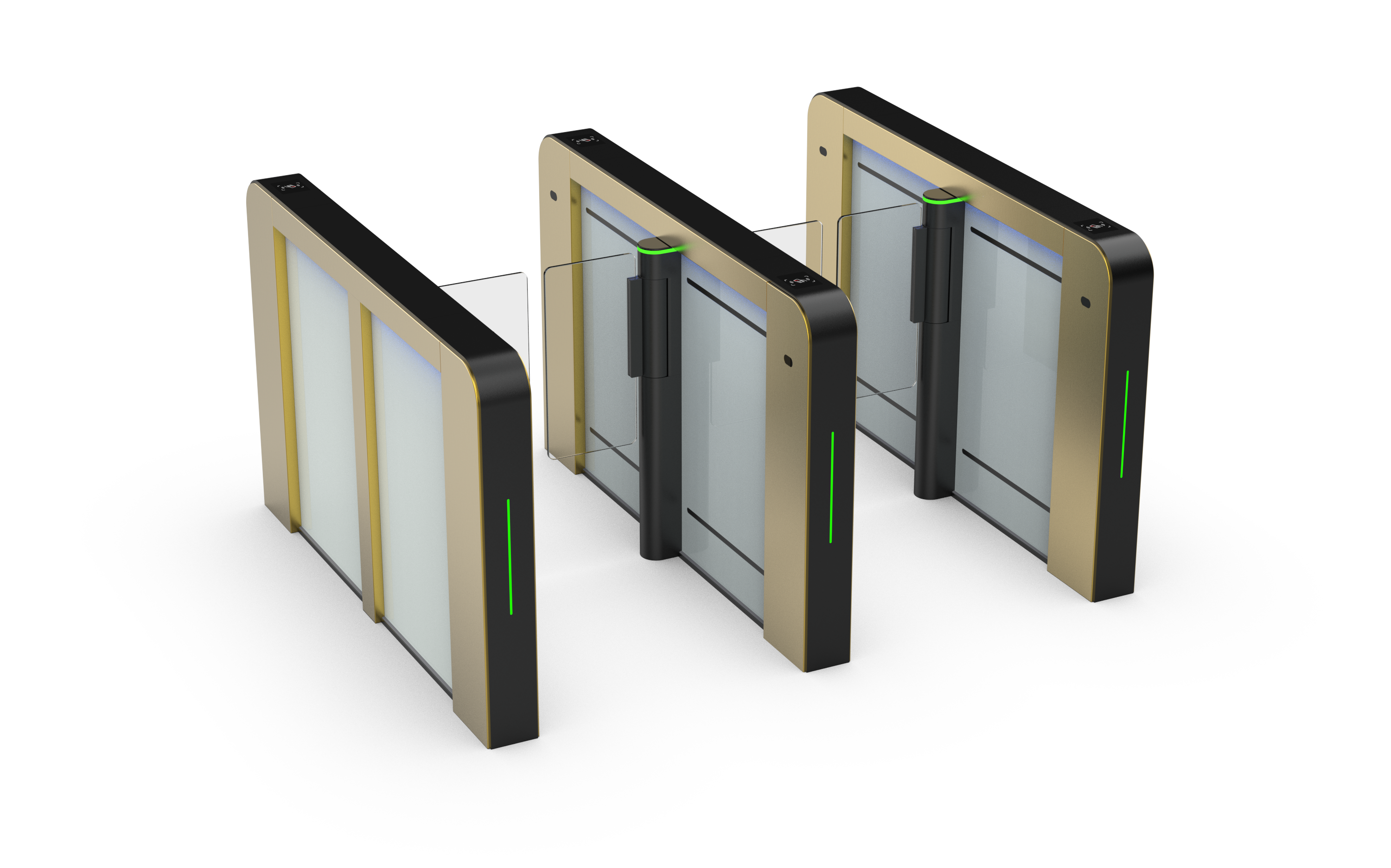

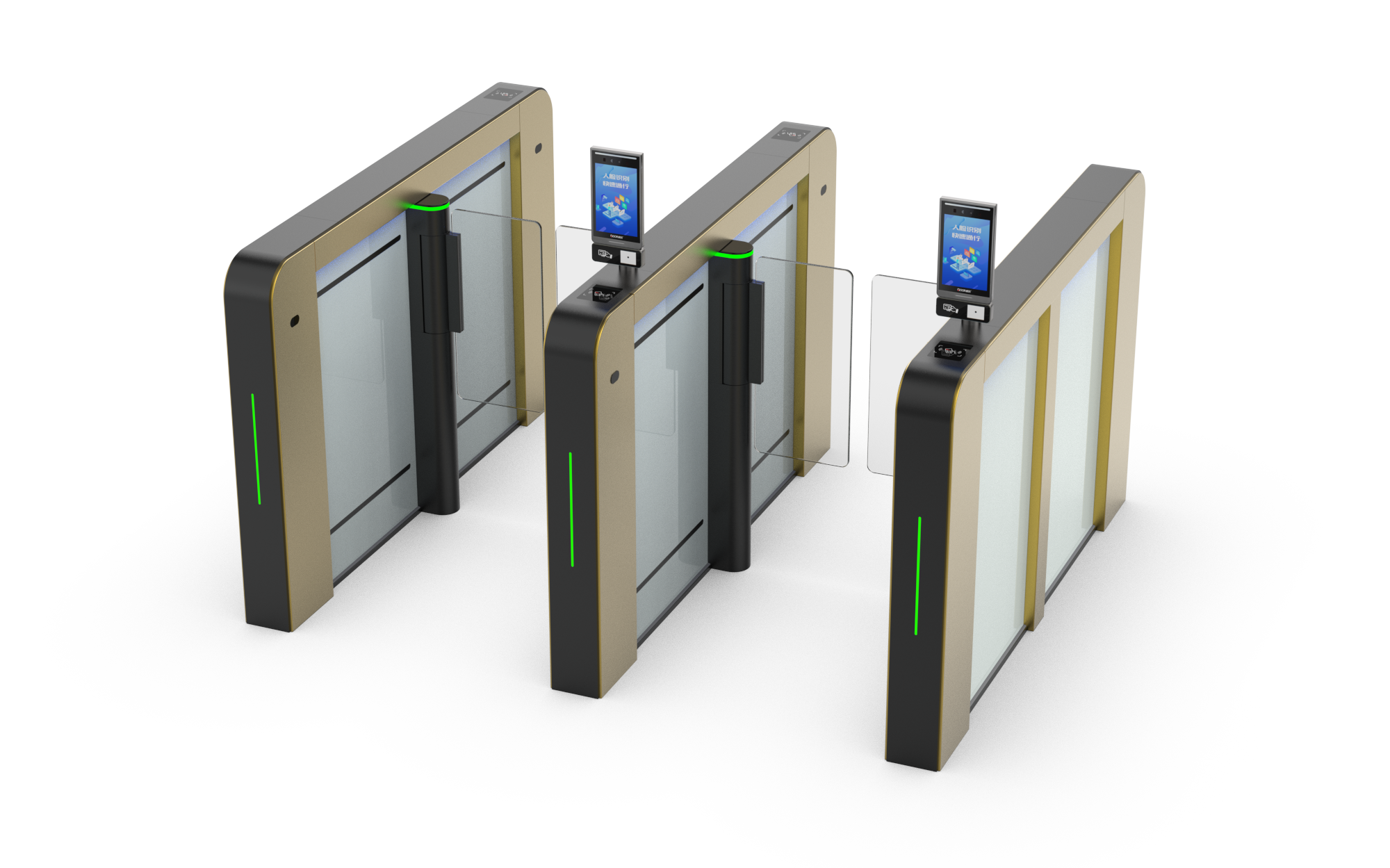

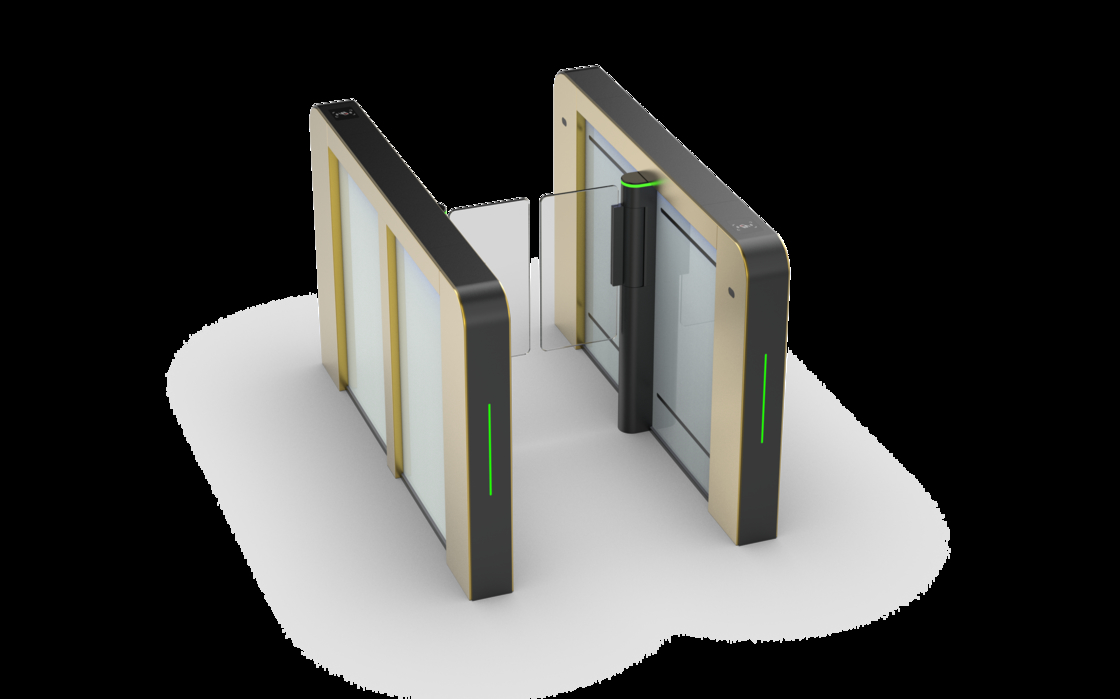

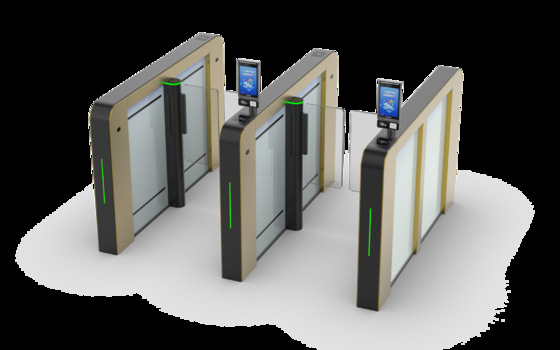

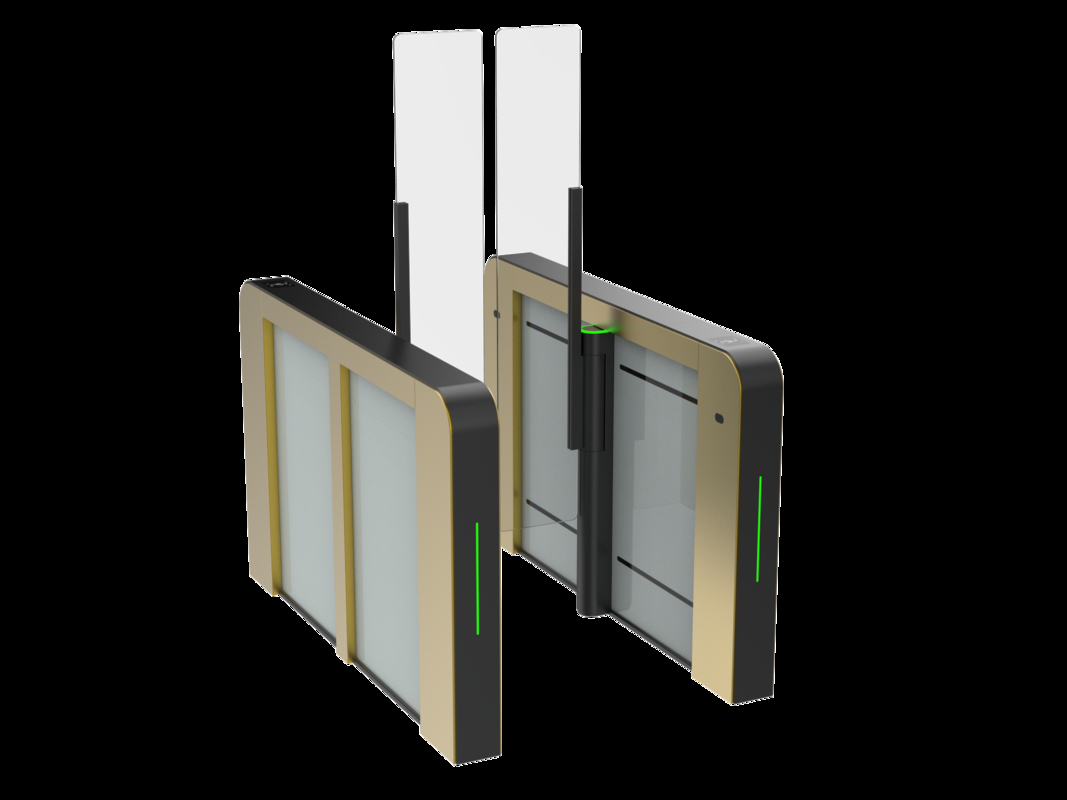

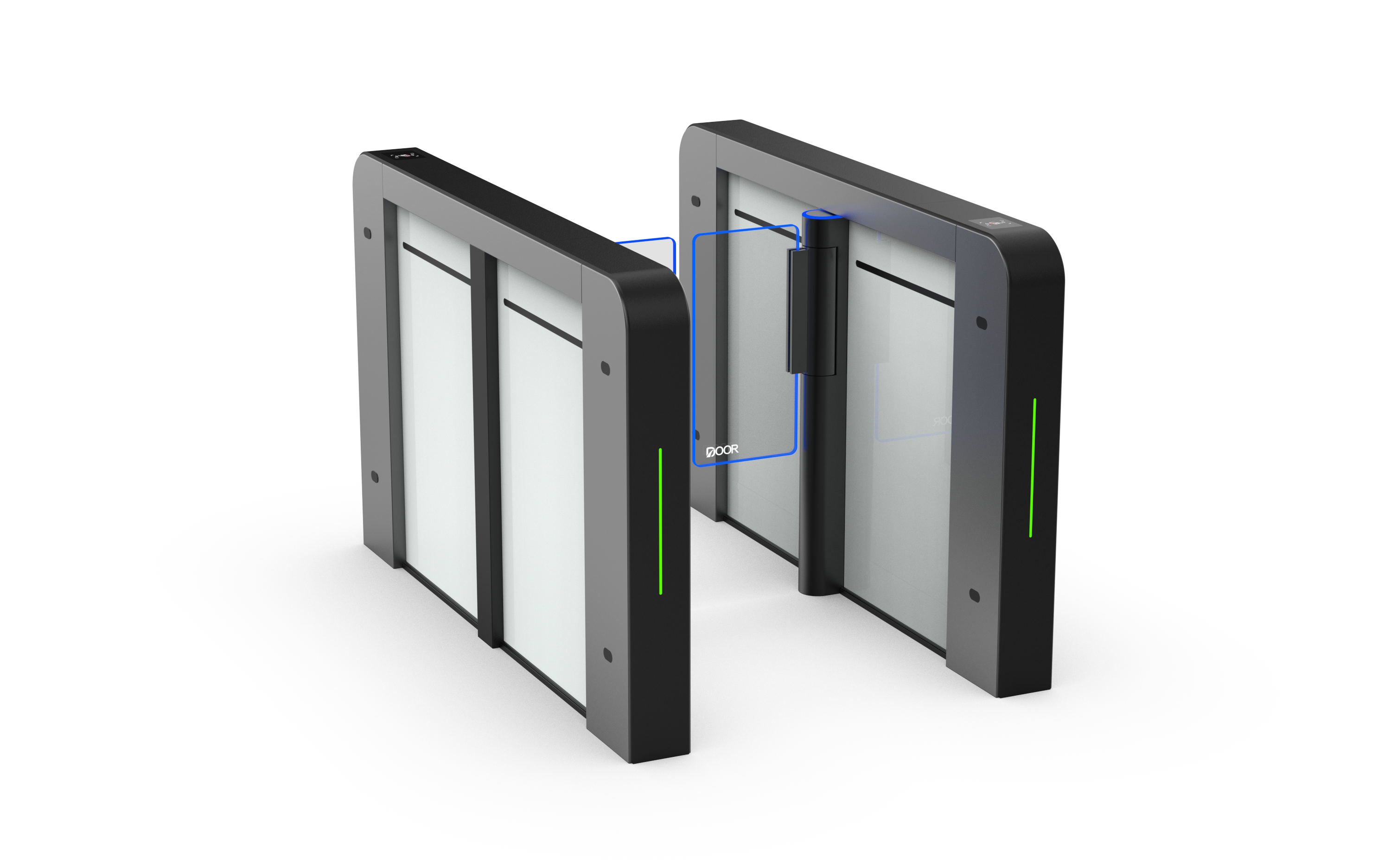

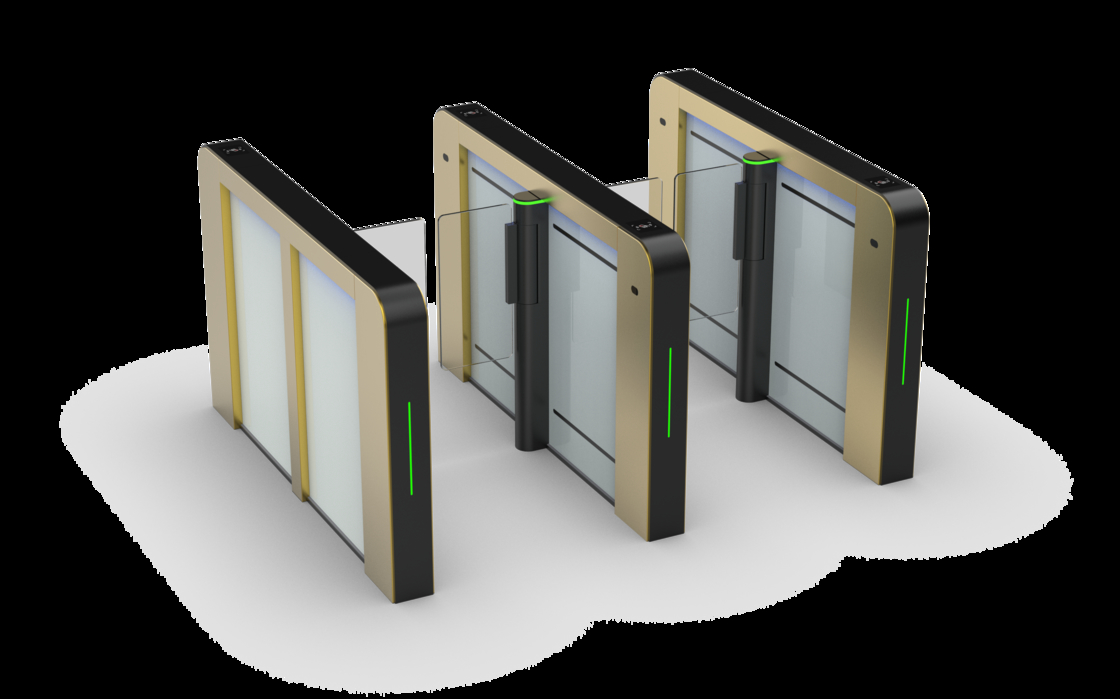

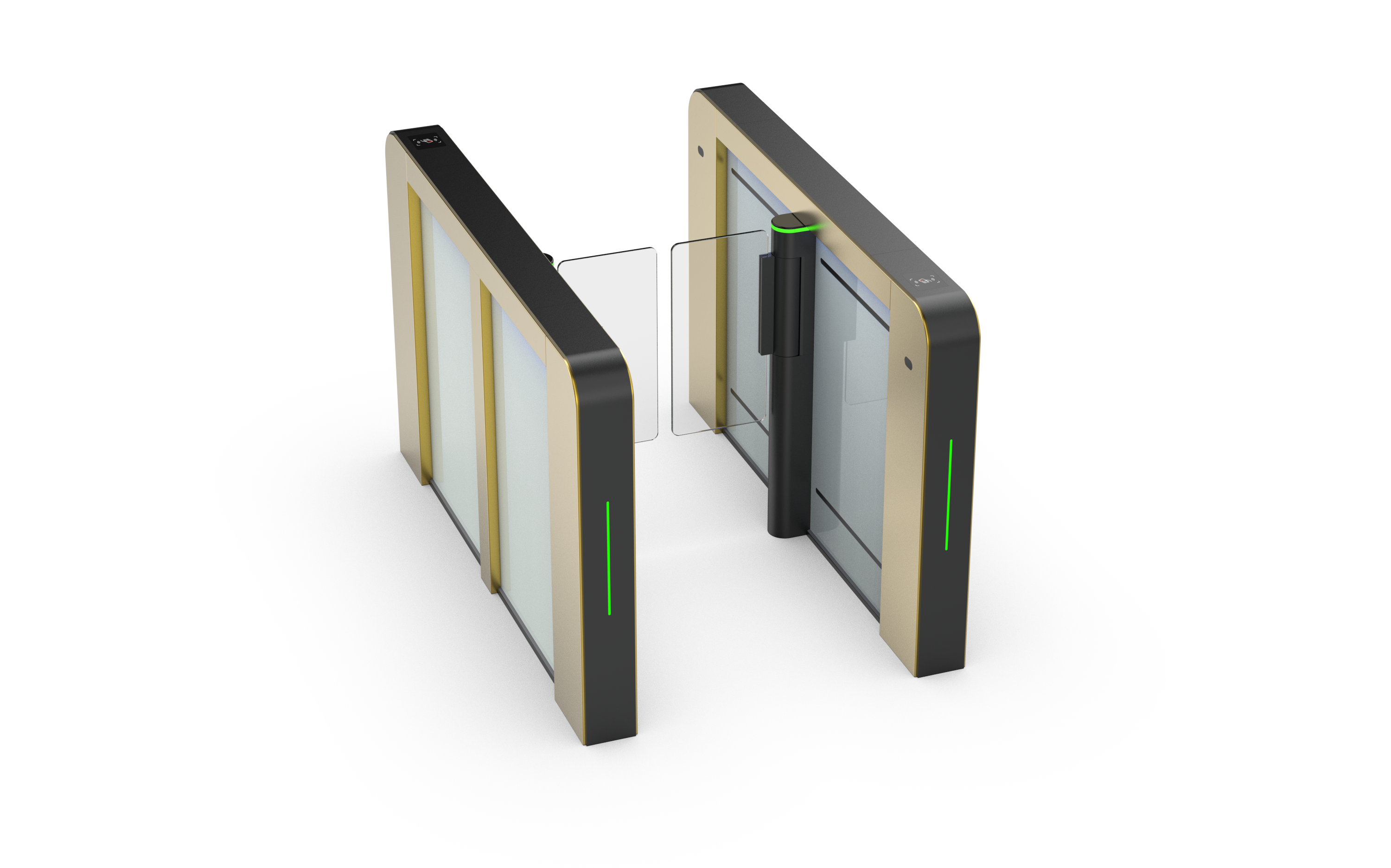

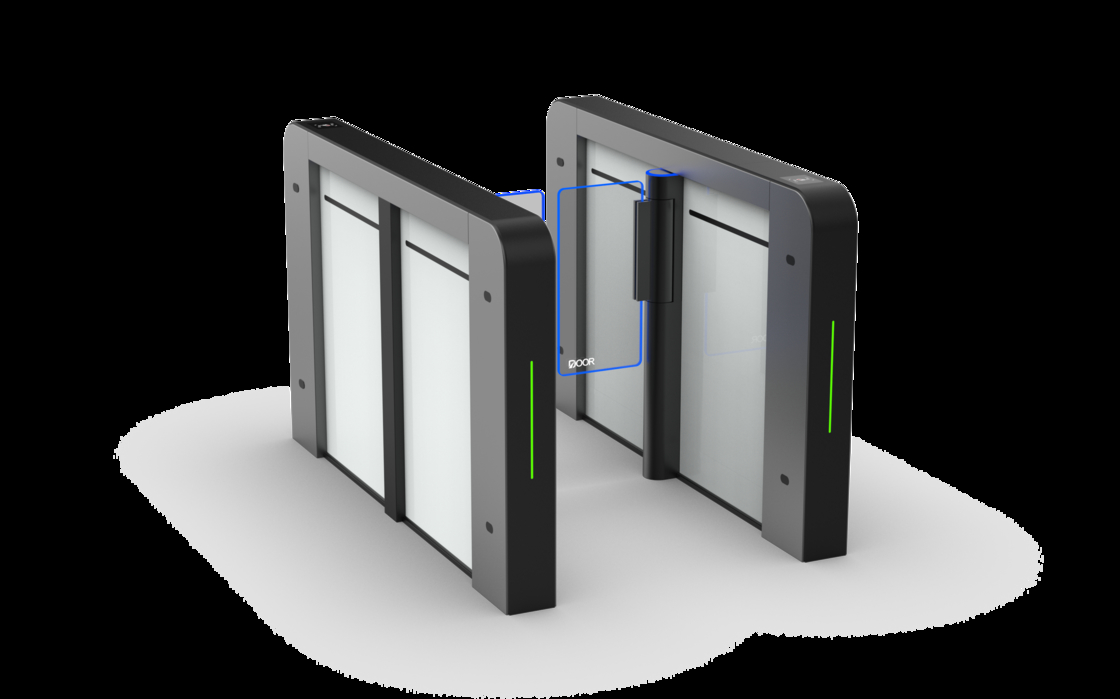

| Product Name | Speed Gate |
| Model | DR.TD.6629A |
| Cabinet Material | SUS304 Stainless Steel + Aluminum Alloy |
| Arm Material | PMMA Acrylics/Plexiglass (Tempered Glass Optional) |
| Size | 1600×140×1000 mm |
| Voltage | AC220±10%V 50±10%HZ |
| Driving Motor | DC24V Servo Motor |
| Passing LED Indicator | Red/Green Indicator + Blue LED Light Strips |
| Method of Positioning | Servo Motor + Clutch + Encoder |
| Direction of Passing | Uni-directional/Bi-directional |
| Passing Width | 600-900mm |
| IR Sensor | 12 Pairs |
| Working Environment | Indoor, -25℃ to 70℃ |
| Relative Humidity | ≤90%, no condensation |
| Opening Speed | Fastest 0.3s (adjustable) |
| Passing Speed | 35-50 people/min |
| MCBF | 20 Million Times |
| Angle of Gate Opening | 90°±5° |
| Noise | <50dB |
| Communication Interface | Level/Pulse/RS485/RS232 |
| Input Interface | Relay (dry contact) |
| IP Level | IP42 |
| Power | 100W (left/right), 200W (middle) |
| Color | Champagne Gold + Black |
This high-speed turnstile combines industrial-grade durability with advanced safety features, offering reliable access control with a passing rate of 35-50 people per minute. The DC24V servo motor ensures smooth operation while multiple protection systems guarantee user safety.
